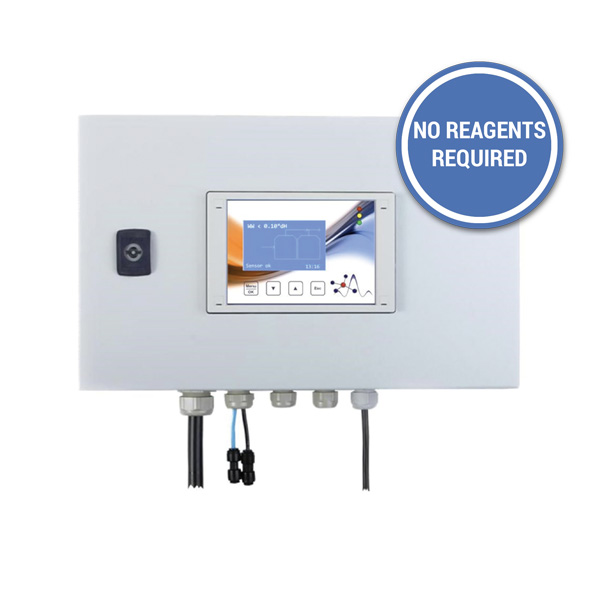

Softcontrol-Data offers reliable online monitoring of softened water hardness using selective potentiometric measurement of calcium and magnesium ions. Unlike conventional analysers, it operates without reagents, reducing maintenance, operating costs and environmental impact.
Configurable hardness limits between 0.01 ppm and 0.18 ppm allow precise monitoring for demanding commercial and industrial water treatment systems.
The analyser supports both analogue current loop output and RS232 communication for data logging and process integration. Real-time readings, system status and available soft water capacity are displayed clearly in English, German or French.
| Wall Mounted | 400 x 250 x 160 mm (W x H x D) |
| Weight | Approx 8 kg |
| Surrounding Temperature | 5 °C … 50 °C |
| Relative Humidity | 20 % … 80 % |
| Power Supply | 100 … 240 Volt / 50 … 60 Hz |
| Power Consumption | 15 V DC, about 20 Watt |
| Raw and Soft Water Connections | Branch pipe with connection for PA-tube o.d. 4 mm, i.d. 2 mm, up streamed dirt filter ≤ 0,1 mm recommended |
| Raw and Soft Water Pressure | Minimum 3 bar up to maximum 10 bars |
| Drain | Minimum ø 15 mm, pressure free |
| Quality of Raw and Soft Water | Natural water, free of grease, oil and brine germ content < 5000 CFU/ml |
| Hardness Range Raw Water | 0.18 ppm 7.2 ppm |
| Hardness Range Soft Water | 0.0018 ppm 0.18 ppm |
| Threshold Value Calibration | 0.01 ppm 0.18 ppm |
| Sensor Control | Automatic |
| Signaling | Threshold value exceeding sensor exchange |
| External Signaling | Potential-free contacts |
| Operation Time of Sensor | Approx. 6 to 9 months |
| select | Softcontrol Data, Hardness Sensor |
|---|
